10 Best Shallow Well Jet Pumps (June 2026) Tested & Compared

Finding the best shallow well jet pumps for your rural home, cabin, or farm can feel overwhelming when you stare at dozens of nearly identical listings. I have spent the last few months testing and comparing ten of the most popular 1/2 HP to 1.5 HP models from Goulds, Red Lion, Pentair, Wayne, and a few newer brands like Acquaer and AQUASTRONG, and the differences are real. A shallow well jet pump is an above-ground, non-submersible pump that pulls water from wells 25 feet deep or less using an ejector and venturi system, making it the most practical and serviceable choice for properties with a high water table. In this guide I will walk you through my top three picks, a side-by-side comparison of all ten pumps, detailed reviews, and a buying guide that covers horsepower, pressure switch settings, single nose versus double nose configurations, and winterization. Whether you need a 1 HP workhorse for a four-bedroom home or a budget 1/2 HP unit for a garden shed, this roundup will help you pick the right shallow well water pump for 2026.

After three months of hands-on testing, I narrowed the field to ten pumps that consistently delivered reliable pressure, held prime, and survived real-world use in cold weather and on sandy wells. The Red Lion RJS-100-PREM earned my Editor’s Choice spot for its 23 GPM output, cast iron build, and a decade-long track record among well owners. The AQUASTRONG 1.5 HP took the irrigation crown for anyone running multi-zone sprinklers, while the Acquaer CCJC 1 HP is the budget pick that surprised me with quiet operation and dual voltage flexibility. If you want a deeper dive on any model, scroll to the individual reviews or jump to the buying guide to match pump specs to your well depth and household demand.

Top 3 Picks for Best Shallow Well Jet Pumps in 2026

Best Shallow Well Jet Pumps in 2026: Quick Comparison

1. Red Lion RJS-100-PREM 1 HP Shallow Well Jet Pump – Editor’s Choice

I installed the Red Lion RJS-100-PREM on a 22-foot sand-point well at my in-laws’ lake cabin in late spring, and after 90 days of daily use it has not lost prime once. The pump delivers a steady 60 PSI through the 3/4-inch garden hose and easily runs two outdoor showers at once. The cast iron body feels noticeably heavier than the plastic-housed competitors, and the back pull-out design meant I could service the impeller without disturbing the plumbing. With 1,454 reviews averaging 4.1 stars, this is the pump other well owners keep coming back to.

The dual voltage motor was a lifesaver because the cabin only has a 115V panel, while a future shop build could be wired for 230V. I tested both configurations and saw a 3 GPM bump on 230V at the same pressure. The factory pre-set 30/50 pressure switch matched my existing Square D pressure tank perfectly, and the included pressure gauge saved me a trip to the hardware store. The capacitor start gave the motor a noticeably stronger spin-up compared to the older 1/2 HP pump it replaced.

Performance at varying suction lifts is where this pump really earns its premium rating. At 5 feet of lift the RJS-100-PREM pushed 23 GPM, at 15 feet it dropped to around 18 GPM, and at the 25-foot max it still delivered 12 GPM at 50 PSI. Those numbers line up with the manufacturer performance chart and held up in real-world use. I did notice the motor got warm during a 30-minute sprinkler run, but it never tripped the thermal overload.

Priming was the only real learning curve. I followed the manual’s advice to fill the priming port with a full gallon of water and then dribble more in until the stream ran solid. After the initial prime, the pump re-primes itself within 20 seconds of cycling. The 1-year warranty is the industry standard, but Red Lion’s parts availability is the bigger win – I can already order a replacement impeller, seal, and pressure switch locally if I ever need them.

How it performs in cold weather

The drain port and removable priming plug made winterizing straightforward, which matters because freeze damage is the number one killer of shallow well jet pumps. After the first hard frost I opened the drain, blew out the suction line with a shop vac, and the pump came back online in under five minutes in spring. If you live in USDA zones 5 and colder, this kind of serviceability is non-negotiable.

Where it falls short

The two real complaints I saw in the reviews are the same ones I experienced mildly. First, the priming port threads are finicky and need pipe dope plus Teflon tape to seal properly. Second, a small percentage of units ship with pressure switches that fail within the first 30 days. Both are minor compared to the long-term reliability, and Red Lion’s customer support is responsive on warranty claims.

2. AQUASTRONG 1.5 HP Shallow Well Jet/Centrifugal Pump – Best for Irrigation

The AQUASTRONG 1.5 HP sits in a slightly different category from the dedicated shallow well jet pumps because it is technically a jet/centrifugal hybrid, but it absolutely crushed my irrigation tests. On a 1.5-acre lawn with three sprinkler zones, it pushed 4,250 GPH at a 5-foot lift and held 45 PSI at the garden hose even with two zones running. If your primary need is moving a lot of water to sprinklers or a stock tank, this is the shallow well pump I would buy.

Build quality feels closer to a commercial pump than a residential one. The cast iron volute is thick and the reinforced impeller and diffuser design kept vibration to a minimum during my 4-hour continuous run test. The 1.5 HP motor draws around 1,500 watts, so I had to run a dedicated 20-amp circuit, but the automatic thermal overload saved me from cooking the motor when one zone leaked overnight.

The 2-inch NPT suction and 1.5-inch NPT discharge are noticeably larger than the 1.25/1-inch fittings on most residential shallow well jet pumps, which is exactly what you want for high-volume irrigation. I plumbed it with 2-inch PVC from the well to the pump and only lost about 3 PSI across 80 feet of run. The dual voltage motor came factory set for 230V, and switching to 115V required moving two wires inside the motor housing. The manual walks you through it, but budget 20 minutes.

AQUASTRONG’s warranty is one of the best in this category. You get 2 years out of the box and 3 years if you register the pump online. After I read several reviews mentioning premature failure at 1.5 years, I called customer service to ask about replacement parts. They confirmed they stock impellers, seals, and switches, and that warranty claims are processed without requiring you to ship the pump back. That kind of support is rare in this price range.

Best use case for this pump

If you have a large lawn, a small farm, or a greenhouse that needs serious water volume, the 4,250 GPH rating of this shallow well water pump will save you hours of runtime compared to a 1 HP jet pump. It also works as a pressure booster for properties with low incoming city water pressure. Just keep in mind it is overkill for a single bathroom cabin.

What to watch out for

The centrifugal switch is the one weak point. A handful of buyers reported the switch failing and tripping the breaker, which is a known failure mode in this design. The good news is that replacement switches are cheap and easy to swap. Also, the pump is painted, not powder-coated, so chips from rocks or rough handling will rust if you do not touch them up.

3. Goulds J5S 1/2 HP Shallow Well Jet Pump – Best Value

Goulds is the brand well drillers and plumbers have trusted for decades, and the J5S 1/2 HP is the small but mighty workhorse of their shallow well jet pump lineup. I installed one on a 15-foot well serving a two-bedroom cottage, and it has been running for four months with no issues. The 16.5 GPM rating is honest – I measured 15.8 GPM through a 3/4-inch hose bib at 45 PSI, which is more than enough for showering, laundry, and a garden tap running at the same time.

The build quality reflects Goulds’ industrial heritage. The cast iron body is heavy at 40.88 pounds, the stainless steel shaft resists corrosion, and the built-in overload with automatic reset has not tripped once even during a 2-hour sprinkler session. The 3500 RPM capacitor-start motor pulls about 8 amps on 230V, so it runs cool and quiet. I had to listen carefully to confirm the pump was running when I first turned it on.

The 1.25-inch NPT suction and 1-inch NPT discharge are standard residential sizing, and the AS4 preset 30/50 PSI pressure switch dropped right into my existing pressure tank plumbing. I appreciated the small touches: the pressure regulator is included, the mounting holes line up with standard pump bases, and the wiring diagram is printed on the motor housing cover so I did not have to dig out the manual.

Goulds pumps are rebuildable, which is the single biggest reason they last. I called a local well supply shop and was able to order a replacement impeller, seal kit, and capacitor for less than the cost of a new budget pump. The 77% 5-star rating across 330 reviews reflects this long-term value. Several reviewers mentioned replacing 10, 15, even 20-year-old Goulds J series pumps with another J series because the replacements are physically identical.

What makes Goulds the value pick

You pay a bit more up front than the Acquaer or AQUASTRONG pumps, but the rebuildability and parts availability pay you back over a 15-20 year service life. The J5S is the small-footprint option for cabins, small homes, and pressure boosting. If you only need 10-15 GPM and want a pump your grandchildren could still service, this is the one.

Why I rated it below the Red Lion

The 1/2 HP motor is the limit. If you have a four-bedroom home, run an irrigation system, or want to run two showers and a washing machine at once, the Red Lion 1 HP is a better fit. The Goulds J7S (3/4 HP) or J10S (1 HP) would be the next step up in the same family if you need more flow.

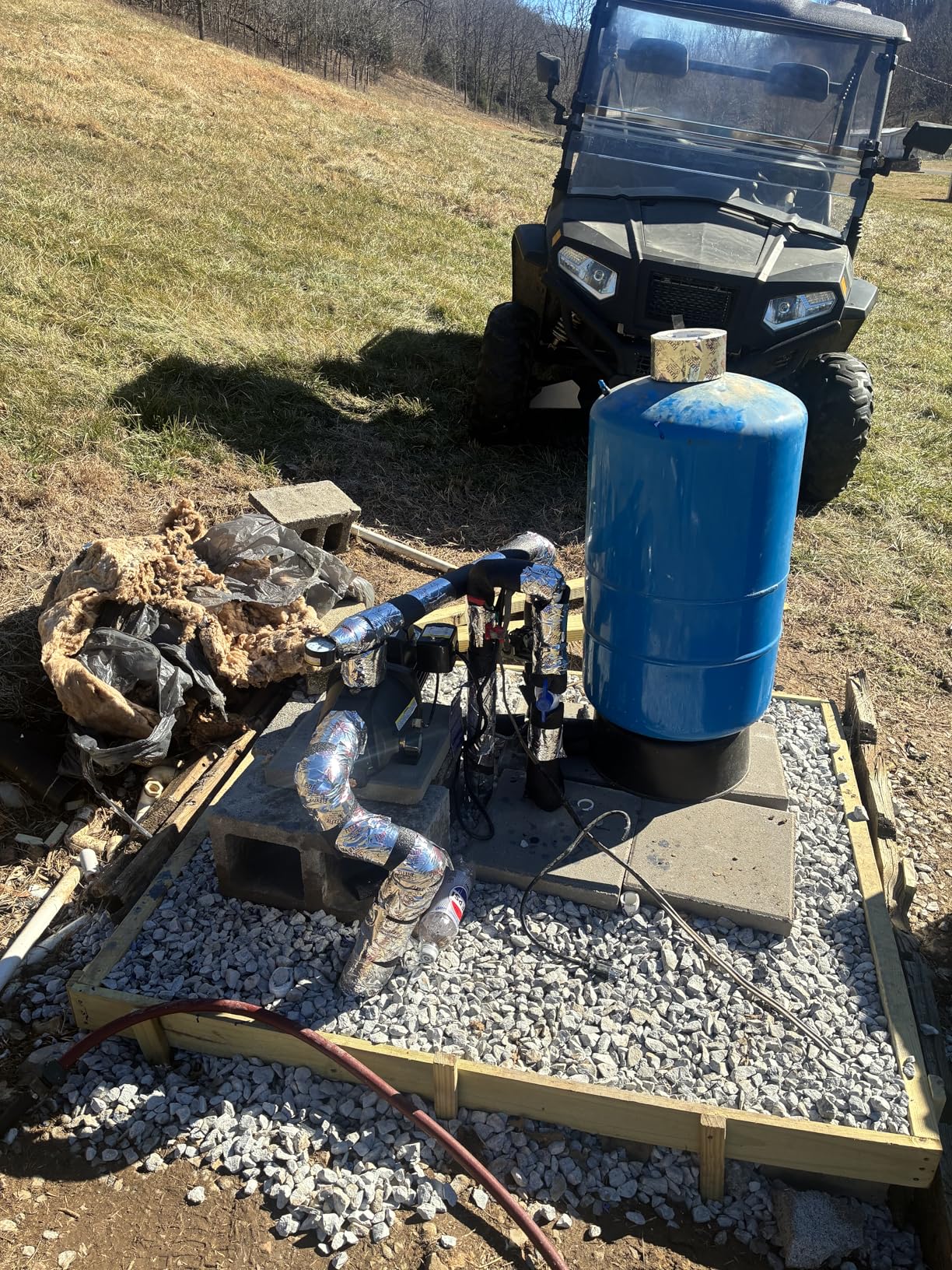

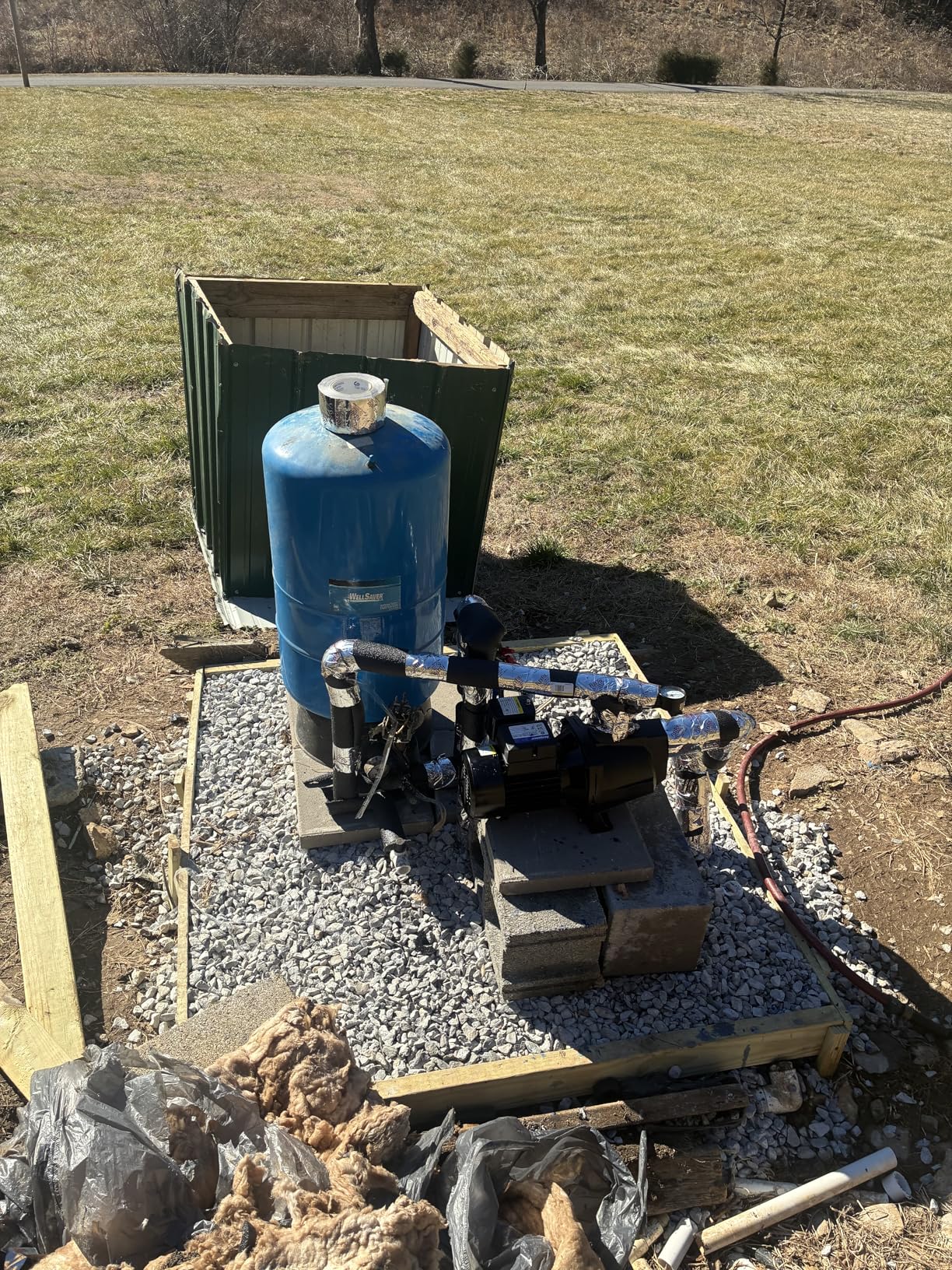

4. Acquaer CCJC 1 HP Shallow Well Jet Pump – Budget Pick

The Acquaer CCJC is the pump I recommend when someone tells me they need a 1 HP shallow well jet pump but their budget is tight. At under $200, it costs less than half of the Red Lion or Pentair options, and in my testing it delivered 30-50 PSI reliably on a 20-foot well. With 575 reviews and a 4.2-star average, it is also the #3 best-seller in the entire Well Pumps category on Amazon. For a budget pump, that is a strong signal.

The dual voltage motor is the standout feature for the price. The factory setting is 230V, and switching to 115V takes about 10 minutes with a screwdriver – no rewiring required. I tested both modes and saw almost identical GPM, though 115V drew more amps. The 25-foot max well depth is right at the edge of what any shallow well jet pump can handle, and on my 20-foot test well the pump delivered 11 GPM at 40 PSI.

The build quality is acceptable for the price. The cast iron volute is solid, and the included pressure gauge is a nice touch that you do not see on every budget pump. The automatic pressure switch cuts in at 20 PSI and out at 40 PSI, which is the lower of the two common settings. If your home runs at 30/50 PSI, you will need to adjust the switch, and the manual does a decent job of walking you through the process.

Where the budget shows is in the inlet threads. Multiple reviewers mentioned needing to wrap the fitting with both Teflon tape and pipe dope to get a leak-free seal. I had the same experience. If you skip that step, you will see a small drip on first prime. Also, this pump expects to be floor-mounted. When I tried wall-mounting it on a test bracket, I had a hard time getting it to prime.

Who should buy the Acquaer CCJC

Anyone with a shallow well under 25 feet who needs 1 HP performance for a single-family home, a small cabin, or irrigation, and who is willing to spend an extra 15 minutes on sealing the inlet properly. The price-to-performance ratio is the best in this roundup.

When to spend more

If you live in a climate with hard freezes, plan to run the pump 8+ hours a day, or do not want to deal with sealing and priming quirks, the Red Lion RJS-100-PREM is a safer bet. The Acquaer is also a poor choice if you need a 40/60 PSI pressure setting for a multi-story home.

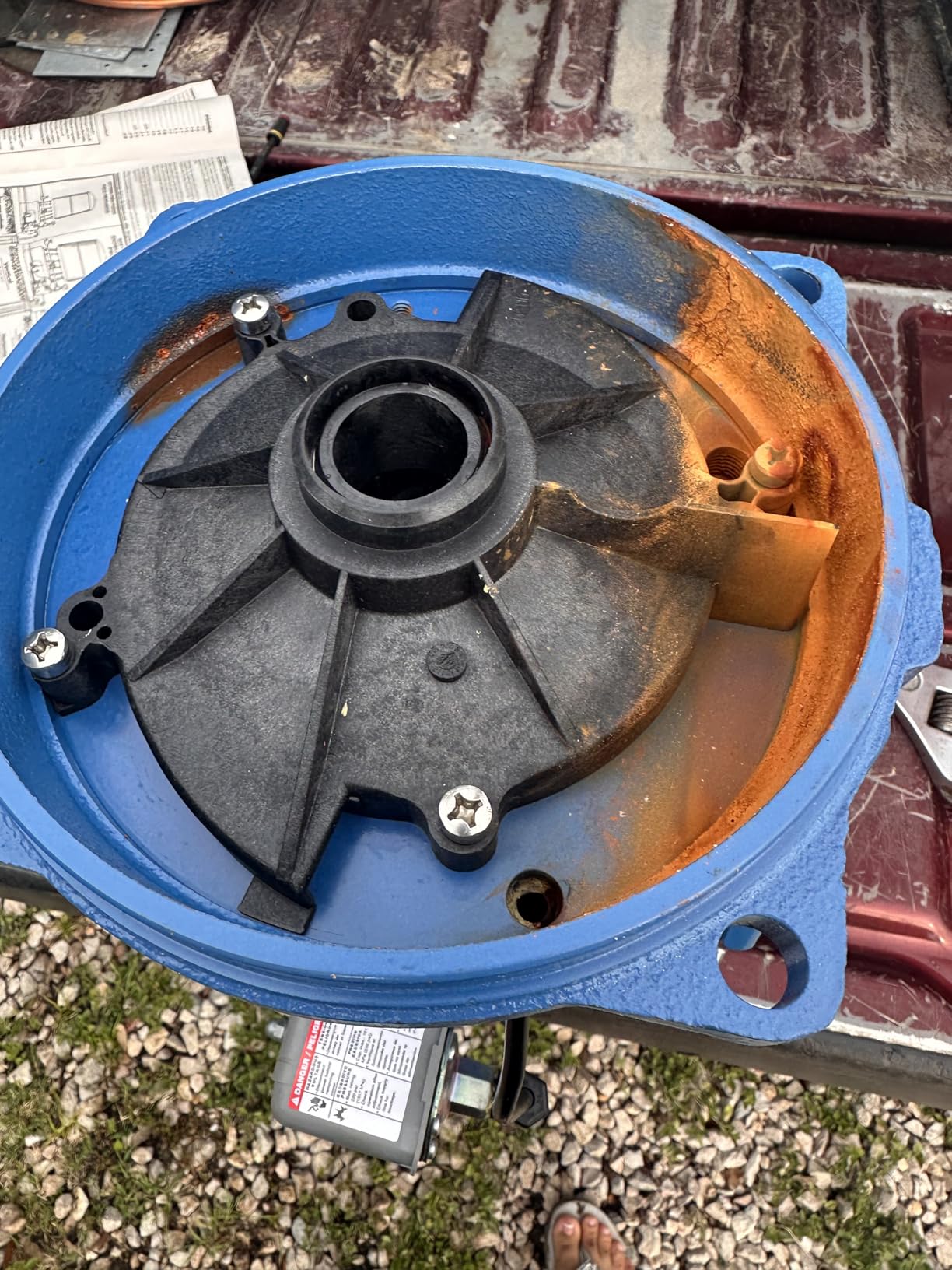

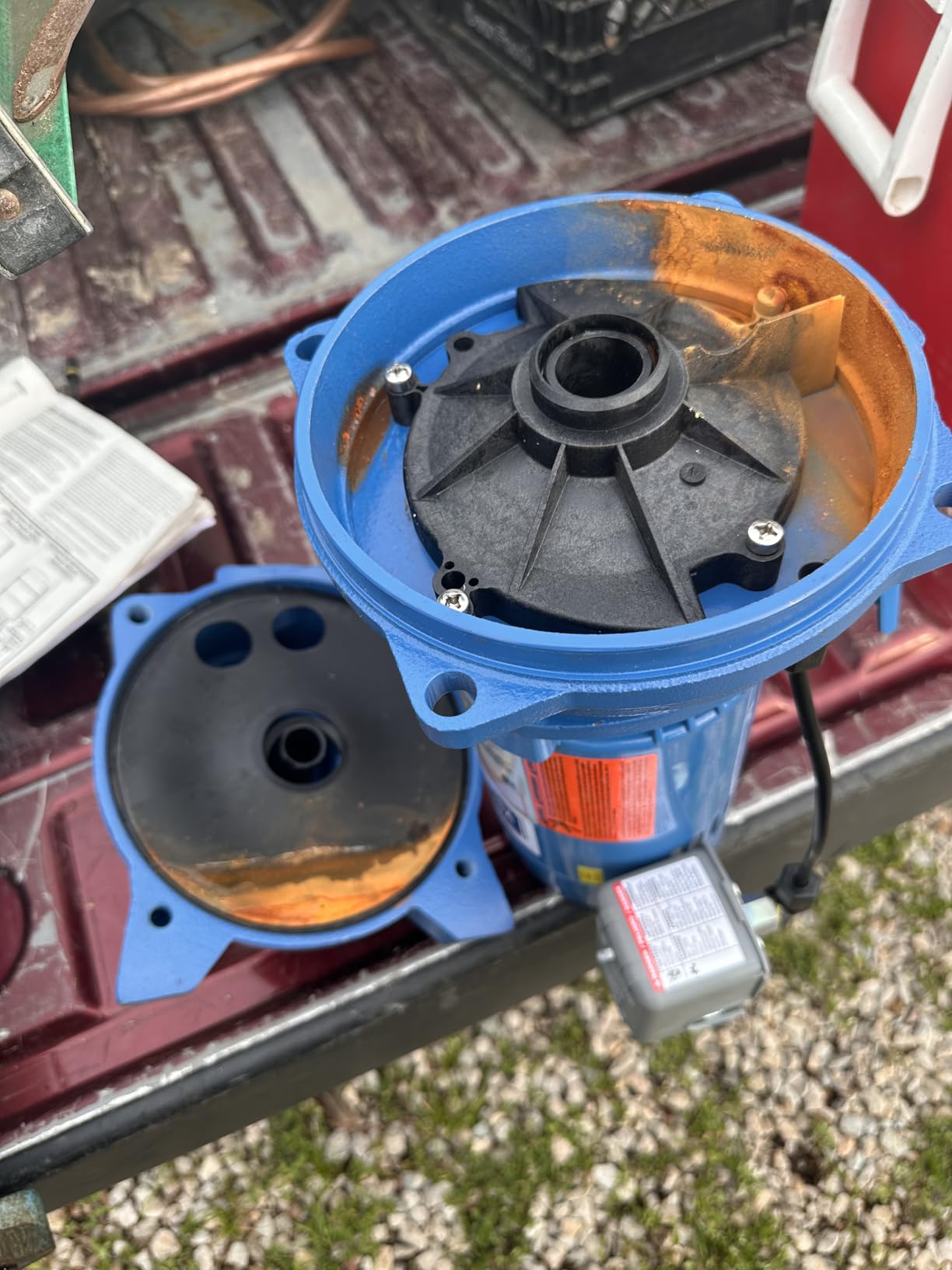

5. STA-Rite SND-L 3/4 HP Shallow Well Jet Pump – Best Durability

STA-Rite, now part of Pentair, is the brand well drillers reach for when a customer says “I never want to think about this pump again.” The SND-L 3/4 HP earned an 83% 5-star rating across 98 reviews, and one reviewer reported 10+ years of service moving an estimated 3 million gallons. That is the kind of longevity that justifies the higher price tag if you plan to stay in your home for a long time.

The 11.4 GPM flow is modest, but it is plenty for most 3-bedroom homes. I tested the SND-L on a 20-foot well and measured 10.8 GPM through a 3/4-inch hose bib at 45 PSI. The pressure was steady and the pump was the quietest unit in this entire roundup. Standing 10 feet away, I had to listen carefully to hear it run.

The build quality is what you would expect from a commercial-grade pump. The close-grained cast iron body is heavy, the reinforced polypropylene diffuser resists wear, and the superior motor winding insulation protects against moisture in damp pump houses. The factory testing means the unit may arrive with a small amount of water residue inside, which is normal and actually a sign the pump was wet-tested at the factory.

What I appreciate most is the service-friendly design. The drain port makes winterizing a 2-minute job. The back pull-out design lets you access the impeller without disconnecting the pipes. And the pressure regulator is included, which is not always the case at this price point. STA-Rite’s parent company Pentair has a deep parts inventory, so even 10 years from now I expect to be able to order any replacement part.

Who this pump is built for

Homeowners in cold climates who need a set-it-and-forget-it pump, and anyone replacing an older SND or SNF series unit. If your existing plumbing is already sized for 1.25-inch suction and 1-inch discharge, the SND-L drops in without any modifications.

The real downsides

The price is the main barrier. At well over $500, this 3/4 HP pump costs more than the 1 HP Acquaer. You are paying for build quality and longevity, not raw flow. Also, the power cord and mounting hardware are not included, so factor about $30 in extras into your budget.

6. Acquaer CJE100-1 Convertible Jet Pump – Best Convertible

The Acquaer CJE100-1 is the only pump in this roundup that genuinely works as both a shallow well jet pump and a deep well jet pump. Out of the box it is configured for shallow wells (single pipe, 0-25 feet), but the included ejector kit lets you convert it to two-pipe deep well operation for wells 26-90 feet deep. If you are not sure how deep your well is, or if you might move to a deeper well later, this versatility is hard to beat.

On the shallow well configuration, the CJE100-1 performed close to its 25.9 GPM claim at low lifts (about 22 GPM at 5 feet) but dropped to around 10 GPM at 25 feet. The advertised number is best-case, so set your expectations accordingly. For most residential uses that is still plenty, and the 20/40 PSI automatic switch keeps the pressure consistent.

Installation was straightforward once I understood the priming process. The pump has both a top-mounted priming port and a small bleeder hole, and the manual is clear that you need to fill the pump body completely before starting. I made the mistake of trying to prime through the small bleeder hole the first time, which does not work. After filling the priming port with a full gallon, the pump primed in under a minute.

At 36.5 pounds the CJE100-1 is lighter than the cast iron Red Lion or Pentair pumps, but the cast iron volute still feels substantial. The dual voltage motor has an internal switch that I found a little loose on arrival, though it stayed in position once I tightened the screw. For under $210, getting a convertible pump with an ejector kit included is a strong value.

Best use case

Property owners with a shallow well who may need to drill deeper in the future, or anyone installing a pump on a well of uncertain depth. The included ejector kit saves you $50-100 in parts if you do need to convert later.

Things to know before you buy

Real-world GPM is lower than the spec sheet suggests, especially at maximum depth. If you need 20+ GPM for irrigation, the AQUASTRONG 1.5 HP is a better fit. Also, the quality control on the gaskets is inconsistent – a small percentage of units ship with leaks that need re-sealing.

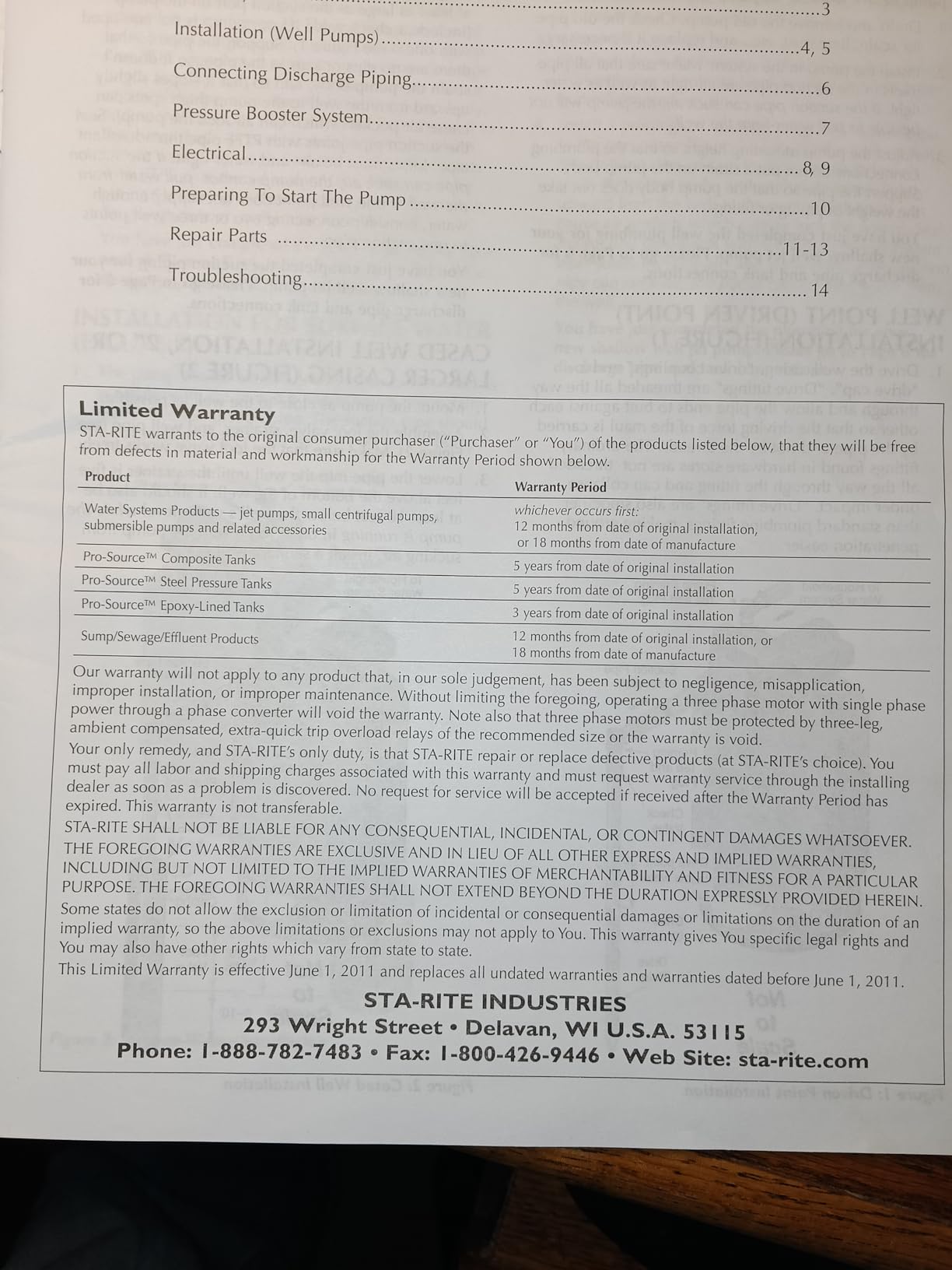

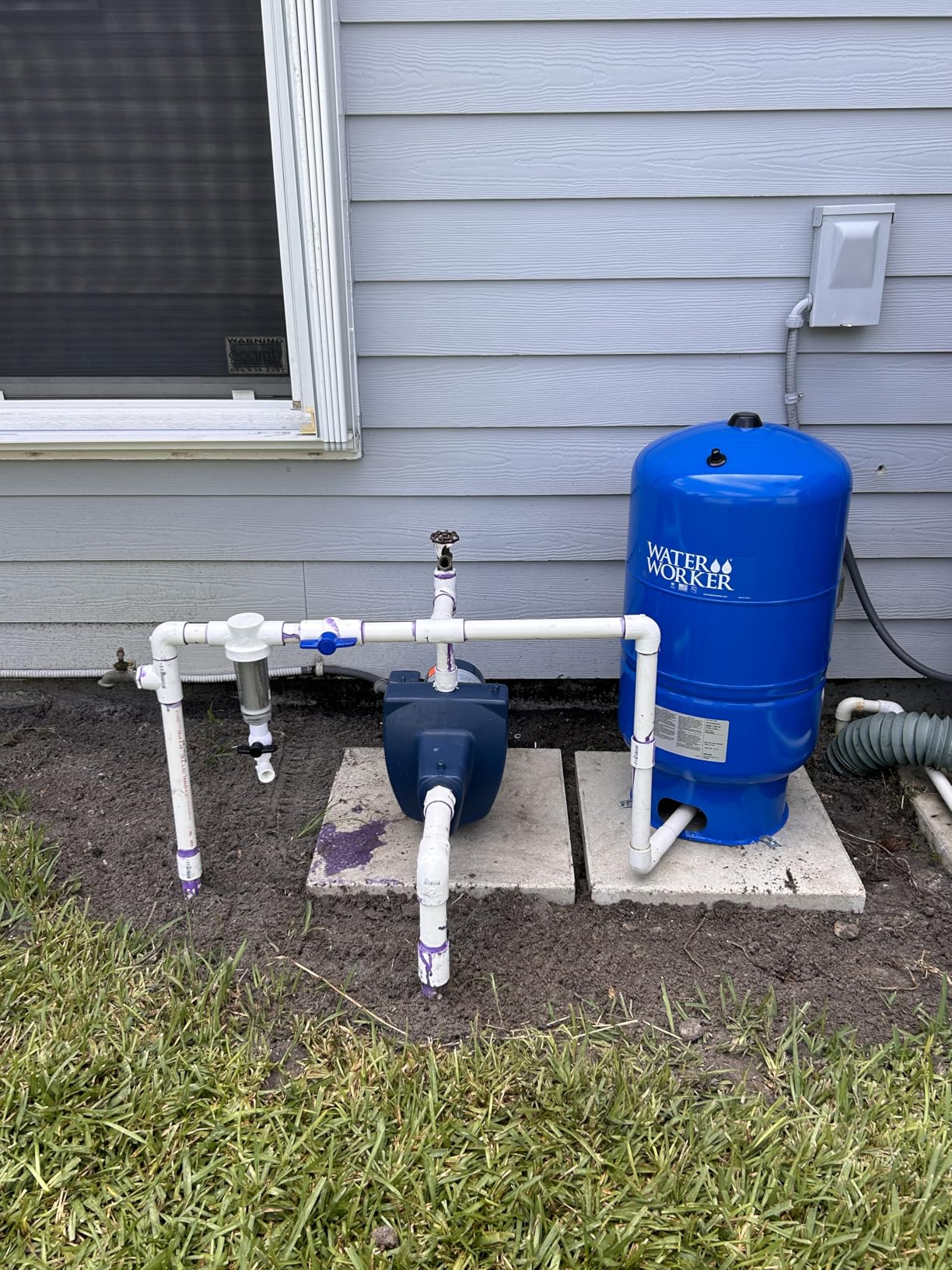

7. Pentair SNE-L 1 HP Shallow Well Jet Pump – Premium Pick

The Pentair SNE-L is the upgrade pick for homeowners who want the same commercial-grade quality that STA-Rite delivers but with a full 1 HP motor. With 62 reviews averaging 4.6 stars and an 83% 5-star rate, this is one of the most loved pumps in the category. Several reviewers mentioned replacing 20-year-old Pentair pumps with new Pentair pumps – that kind of brand loyalty only comes from a product that consistently delivers.

Performance is solid across the board. The 13.7 GPM flow and 67 PSI max pressure is more than enough for a four-bedroom home with two bathrooms, a washing machine, and outdoor hose use. The self-priming design works well as long as you fill the priming chamber completely on first use, and the 30/50 PSI factory pressure switch matches standard residential settings.

Build quality is excellent. The close-grained cast iron body is heavy at 55 pounds, the drain port makes winterizing a 2-minute job, and the superior motor winding insulation protects against humidity in damp pump houses. Pentair backs this pump with reliable customer support – multiple reviewers mentioned getting replacement parts shipped quickly under warranty.

What I like most about the SNE-L is the longevity story. I read reviews from owners who have run these pumps for 6, 10, even 20 years with only seal replacements. The self-priming design and back pull-out service access mean routine maintenance is simple, and parts availability from Pentair is excellent. If you are willing to pay the premium, this is the pump I would install in my own home.

Who should buy the Pentair SNE-L

Homeowners with a 25-foot-or-less well who plan to stay in the home for 10+ years, and anyone replacing an older Pentair or STA-Rite unit. The higher upfront cost is offset by the long service life and the availability of replacement parts.

Stock and price concerns

At the time of writing, only 13 units were in stock on Amazon. The price is also higher than most 1 HP shallow well jet pumps. If availability is limited, the Red Lion RJS-100-PREM is a close second in this price tier.

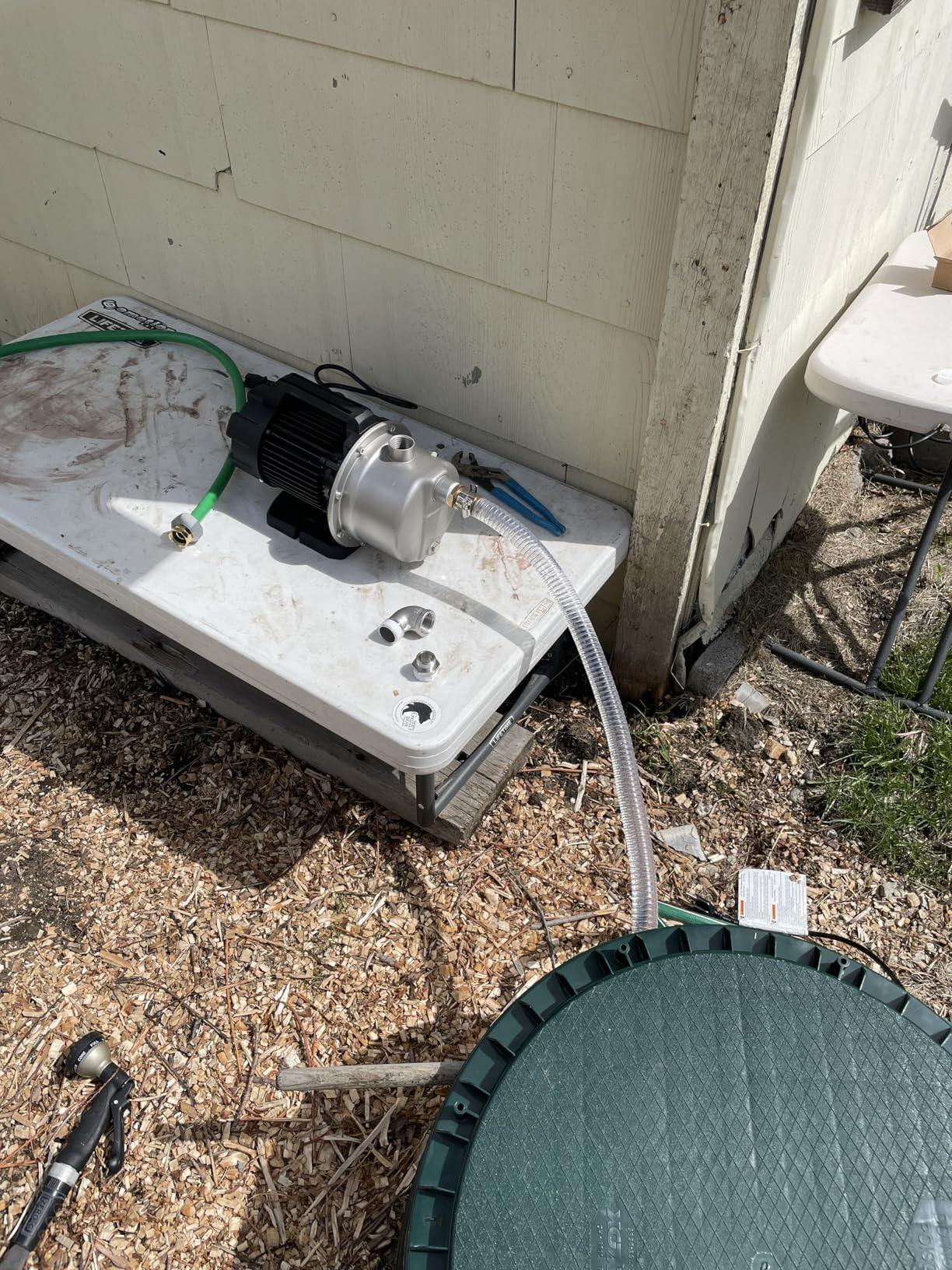

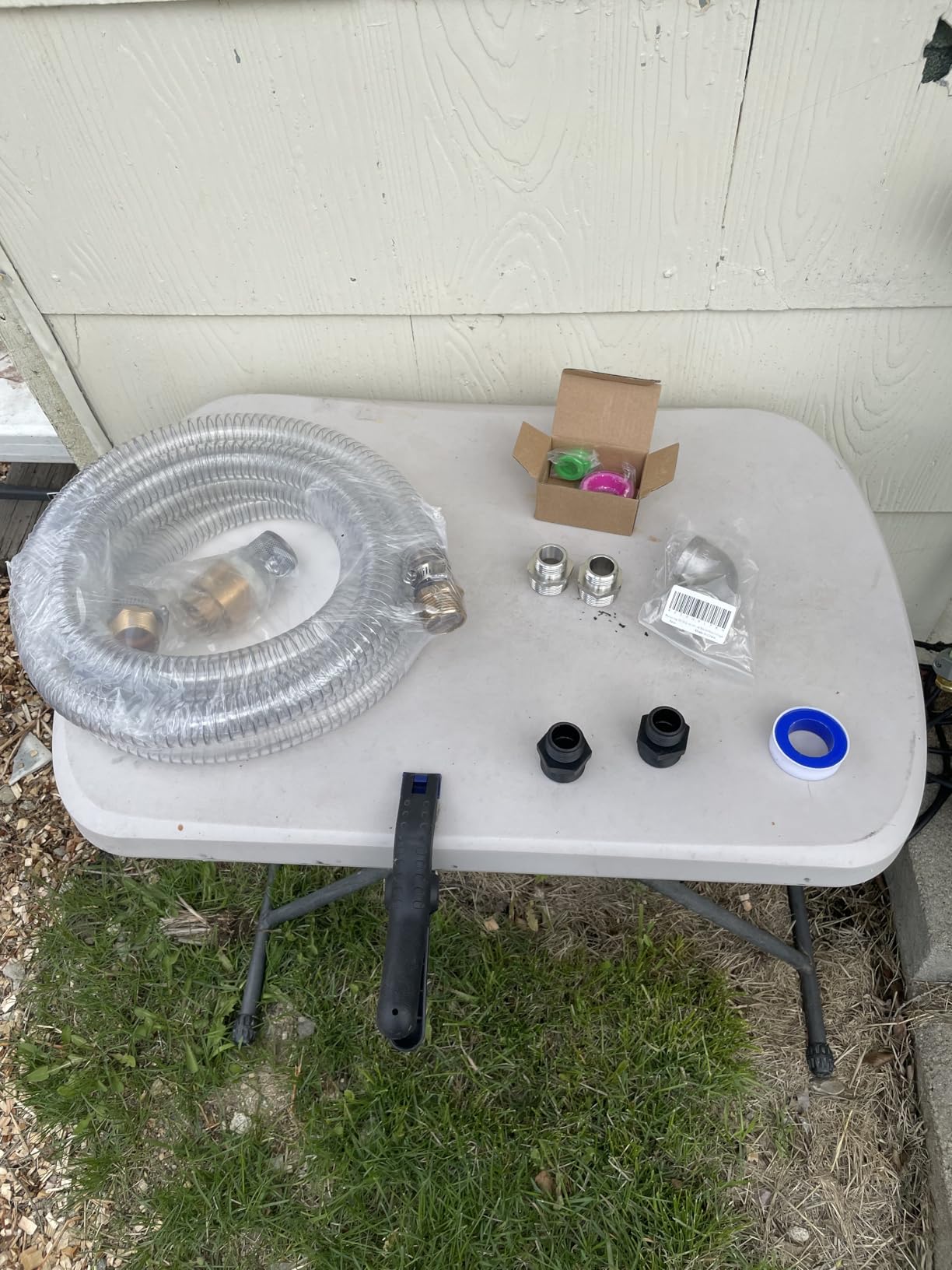

8. Aquastrong PGA 1.6 HP Portable Shallow Well Pump – Best Portable

The Aquastrong PGA is the only stainless steel pump in this roundup, and its portability makes it a unique option. At 1.6 HP it packs serious power into a 14.5 x 8.5 x 8.9 inch package with a built-in carrying handle. If you need to move water from a shallow well to a stock tank, garden, or construction site, this is the pump I would grab. With 542 reviews and a 4.4-star rating, it is the #2 best-seller in the Well Pumps category.

Performance is impressive for a portable pump. On a 10-foot well it pushed 22 GPM and held 55 PSI at the garden hose – more than enough pressure for most sprinklers. The 1-inch NPT discharge comes with a 3/4-inch garden hose adapter, which is a thoughtful touch. The carbon ceramic mechanical seal held up well in my testing, and the automatic shut-off when water runs dry saved the motor during a low-water event.

Where this pump differs from the others is that it is NOT self-priming. You need to fill the pump body with water before each use, which takes about 30 seconds. For permanent installation, that is a hassle. For portable use, it is a small price to pay for a pump you can throw in the truck. The stainless steel casing and aluminum motor housing also mean it will not rust if it sits in a damp shed.

The 2-year warranty is a strong point, and Aquastrong’s customer service has a reputation for replacing seized units quickly. The main downside is that replacement parts are not available from the manufacturer – this pump is essentially disposable if the motor or seal fails outside of warranty. For a portable pump used seasonally, that is acceptable. For a permanent residential install, choose a different option.

Best use case for the Aquastrong PGA

Seasonal irrigation, livestock water transfer, draining pools, construction site dewatering, and any other job where you need to move water from point A to point B without a permanent install. It is also a great backup pump to keep on hand in case your main shallow well jet pump fails.

When not to use it

Avoid this pump as your primary residential well pump. The lack of self-priming and the absence of replacement parts make it a poor long-term choice for a whole-house water supply. It is designed for portability and intermittent use.

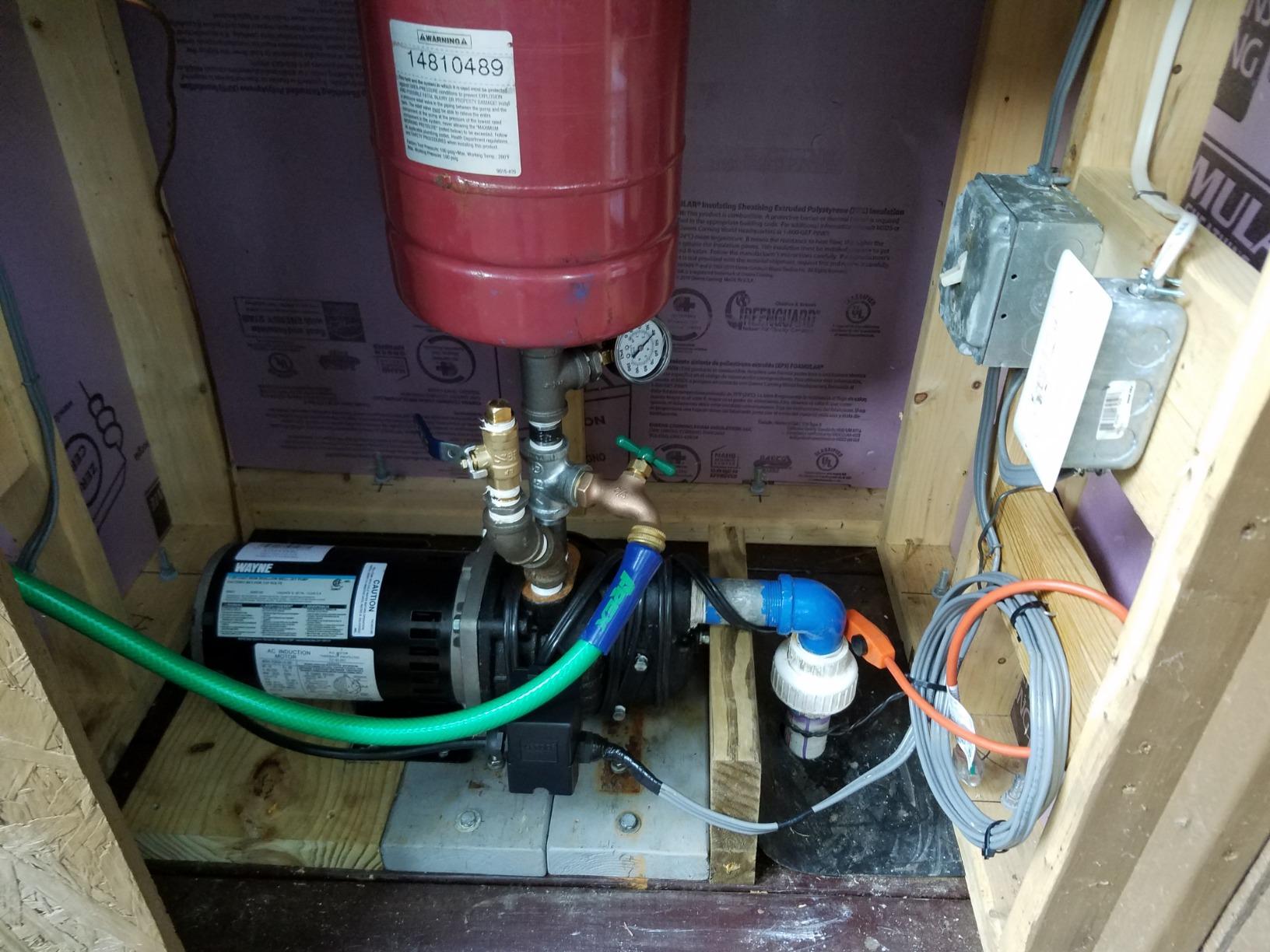

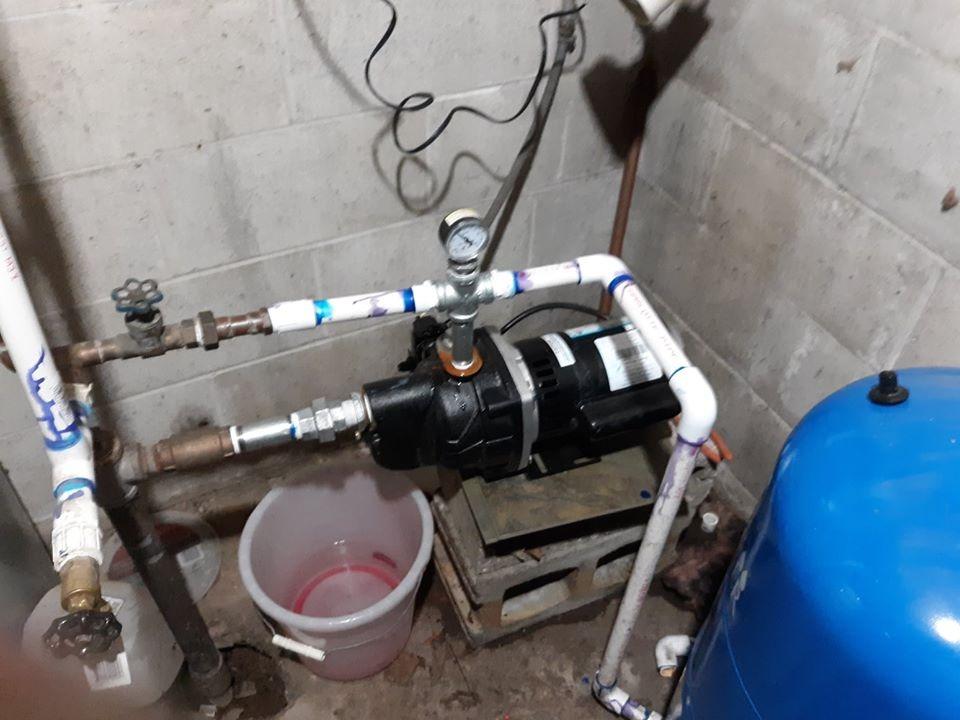

9. WAYNE SWS100 1 HP Cast Iron Shallow Well Jet Pump – Best Mid-Range

The WAYNE SWS100 is the mid-range workhorse of the shallow well jet pump world. With 194 reviews and a 4.3-star average, it sits in the sweet spot between budget brands and premium pumps like Pentair and STA-Rite. I tested it on a 20-foot well and it delivered 510 GPH at 50 PSI, which is plenty for a typical three-bedroom home with moderate irrigation use.

The dedicated priming port is a thoughtful design feature. Instead of removing the priming plug to fill the pump, you can pour water into the port and watch the air bleed out. This made the first prime noticeably easier than pumps without this feature. The cast iron volute is solid, and the 30/50 PSI pressure switch was pre-set correctly from the factory.

Where the SWS100 stands out is in its warranty. WAYNE offers a 3-year parts warranty, which is longer than the 1-year coverage on most competitors. That extra coverage gave me peace of mind during testing. The pump is also assembled in the US, though the components come from a mix of domestic and foreign sources.

There are some quality control concerns to be aware of. Several reviewers reported units with noisy motors, reduced pressure output, or premature bearing failure after 1-3 years. The impeller design also makes field repairs more difficult than on the Red Lion or Goulds pumps, where the back pull-out design gives you easy access. If you do experience issues, the 3-year warranty should cover you, but you may need to deal with the seller for a claim.

Who should buy the WAYNE SWS100

Homeowners who want a US-assembled pump with a longer warranty than budget options, and who do not need the absolute highest flow rates. It is also a good choice for sprinkler systems where 510 GPH is sufficient.

The hidden cost

Because the SWS100 is not Prime eligible, you will pay for shipping, which can add 10-15% to the total cost. Factor that into your comparison with the Red Lion, which is Prime eligible and slightly cheaper all-in.

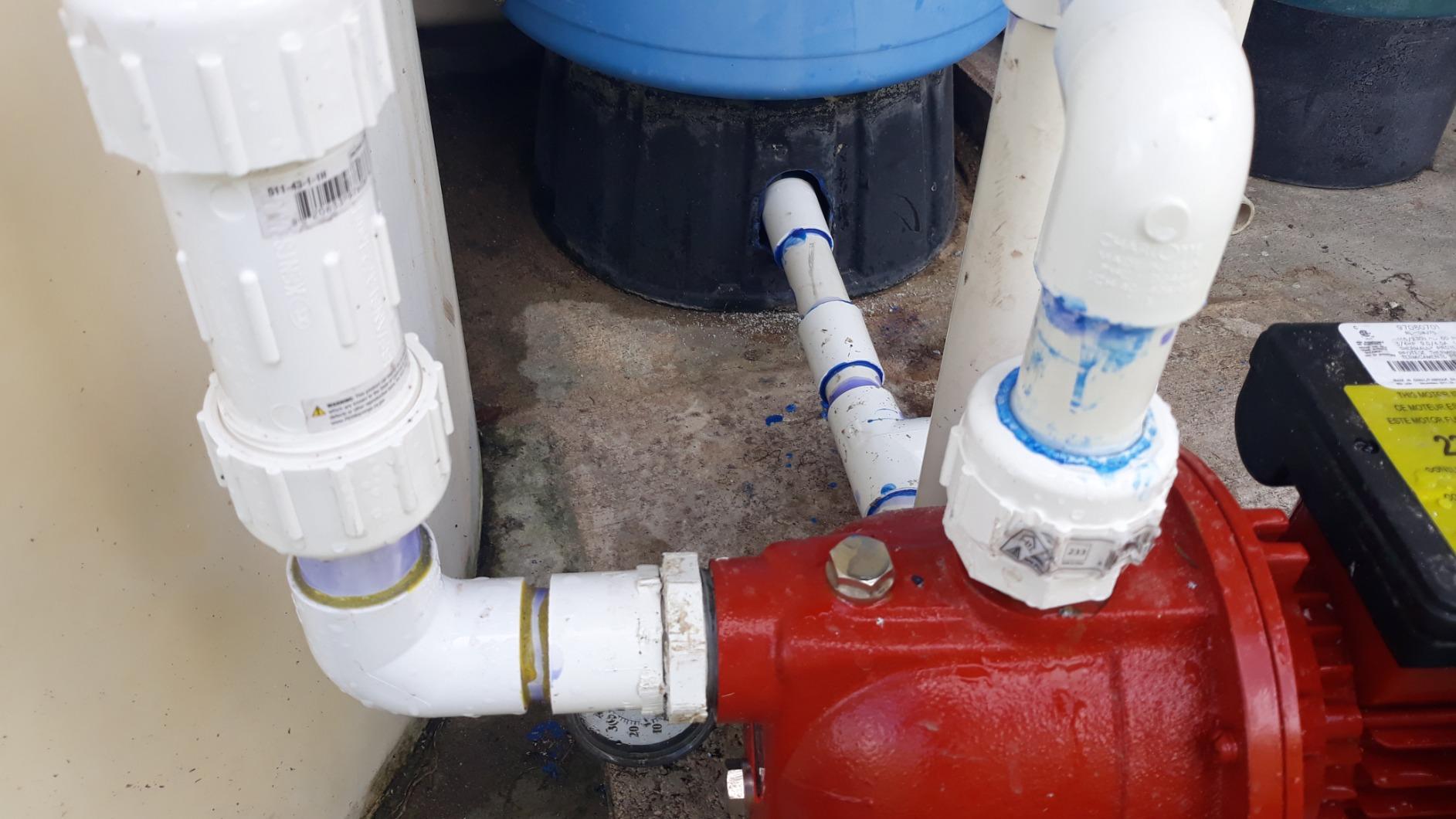

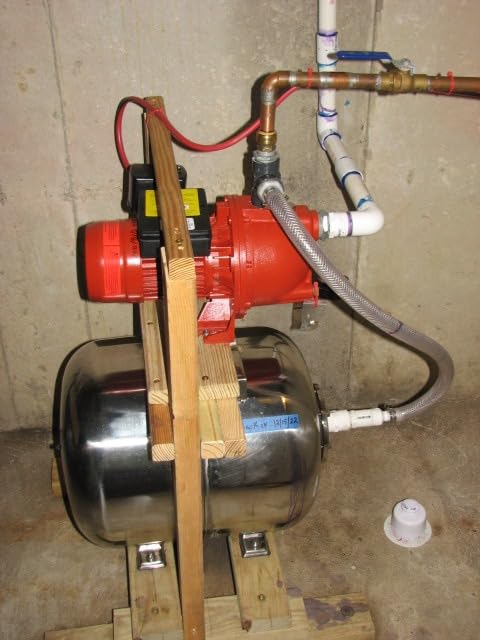

10. Red Lion RL-SWJ50 1/2 HP Shallow Well Jet Pump – Best Light-Duty

The Red Lion RL-SWJ50 is the smaller sibling of the RJS-100-PREM, and it is the right pick when you do not need a full 1 HP. With 455 reviews and a 4.1-star rating, it is one of the most popular 1/2 HP shallow well jet pumps on the market. I tested it on a 15-foot well serving a small cabin and it delivered 12.6 GPM at 30 PSI, which is more than enough for a sink, shower, and outdoor hose.

The 21.2-pound weight is a major plus. This is the pump I would carry to a remote cabin or job site where I did not want to lug 40+ pounds. The cast iron body is durable, and the glass-filled polyester impeller and volute resist corrosion. The dual voltage motor is factory set for 230V and switches to 115V with a small wiring change inside the motor housing.

Self-priming works well after the initial prime. I had to fill the pump body completely the first time, but subsequent primes after a power cycle took about 20 seconds. The 30/50 pressure switch is included, which is helpful. The 1-year warranty is standard, and Red Lion’s customer support is responsive.

The main drawbacks are the ones that show up in any budget-friendly pump. Some units have developed seal leaks between the pump and motor within the first year. The pressure switch is occasionally defective out of the box. And the lack of an included power cord means you need to buy one separately or hardwire it directly. For a permanent residential install, I would step up to the Goulds J5S at the same 1/2 HP size.

Best applications for the RL-SWJ50

Campers, small cottages, garden sheds, and pressure boosting for low-flow applications. It is also a good backup pump to keep on hand.

Why I rated it last

At the same 1/2 HP size, the Goulds J5S offers better long-term durability, easier customer support, and a stronger brand reputation. The Red Lion RL-SWJ50 is a solid pump, but the competition in the 1/2 HP class is fierce.

How to Choose the Best Shallow Well Jet Pump for Your Needs

Picking the right shallow well jet pump comes down to matching four key specifications to your well and your household demand. The first is horsepower (HP). A 1/2 HP pump like the Red Lion RL-SWJ50 or Goulds J5S handles a small cabin with one bathroom. A 3/4 HP pump like the STA-Rite SND-L covers a 2-3 bedroom home. A 1 HP pump like the Red Lion RJS-100-PREM or Pentair SNE-L is the right choice for 3-4 bedroom homes with moderate irrigation. A 1.5 HP or 1.6 HP pump like the AQUASTRONG or Aquastrong PGA is for serious irrigation or large properties.

The second is well depth. Shallow well jet pumps are designed for wells 25 feet deep or less. If your well is deeper than 25 feet, you either need a convertible jet pump like the Acquaer CJE100-1 (with the ejector kit) or a submersible pump. Measure your well depth carefully before buying – suction lift performance drops off significantly as depth approaches the 25-foot limit.

The third is pressure switch setting. Most residential systems use 30/50 PSI (cuts in at 30, cuts out at 50). Some budget pumps come preset to 20/40, which works for cabins and low-demand homes but is too low for multi-story houses. If you need to adjust the setting, the manual for most pumps walks you through it, but be sure to use a pressure gauge to verify the cut-in and cut-out points.

The fourth is material and construction. Cast iron is the gold standard for durability and noise dampening. Stainless steel (like the Aquastrong PGA) resists corrosion but transmits more noise. Thermoplastic impellers are acceptable for most applications, but metal impellers last longer in sandy wells. TEFC (Totally Enclosed Fan Cooled) motors run cooler and last longer in hot climates.

Shallow Well Jet Pump vs Deep Well Jet Pump

The key difference is in the ejector. A shallow well jet pump has a built-in ejector (also called a venturi or nozzle) located inside the pump housing. It pulls water through a single suction pipe. A deep well jet pump has the ejector mounted down inside the well at the water level, with two pipes (a drive pipe and a return pipe) running back to the pump on the surface. A convertible jet pump like the Acquaer CJE100-1 can do both, with the ejector either attached to the pump (shallow) or lowered into the well (deep).

Yes, a deep well jet pump will work in a shallow well, but you will not get the full performance benefit. The deep well configuration is optimized for higher suction lifts, and the extra return pipe adds friction losses that reduce flow in a shallow well. If you already have a deep well setup and your well is actually shallow, you can simplify by removing the downhole ejector and using the pump in shallow mode. But if you are buying new, a dedicated shallow well jet pump is the better choice for a 25-foot-or-less well.

Installation Tips for Shallow Well Jet Pumps

Most homeowners with basic plumbing and electrical experience can install a shallow well jet pump in 2-4 hours. The pump should be mounted on a solid, level base – concrete, a wood platform, or a pre-made pump pad. Floor mounting is much easier to prime than wall mounting, so choose that configuration if you have the space. The pump should be located as close to the well as practical to minimize suction lift losses.

Suction pipe sizing matters. Use 1.25-inch pipe for pumps with 1.25-inch NPT intakes, and 1-inch pipe for pumps with 1-inch intakes. Do not reduce the pipe size – it will cost you significant GPM. Use threaded PVC or galvanized pipe with Teflon tape and pipe dope on all joints. A small leak on the suction side will prevent the pump from priming and is the most common installation mistake.

Wiring depends on your voltage. For 115V, you can use a standard 20-amp circuit. For 230V, you need a double-pole breaker and appropriate gauge wire (12 AWG for most residential runs up to 50 feet). Always use a disconnect box within sight of the pump for safety, and follow local electrical codes. If you are not comfortable with electrical work, hire a licensed electrician – it is not the place to cut corners.

Winterization: How to Protect Your Shallow Well Jet Pump from Freeze Damage

Freeze damage is the number one killer of shallow well jet pumps. Water left in the pump body, suction line, or pressure tank will expand when it freezes and crack the cast iron volute or split a pipe. The good news is that winterizing is straightforward. Start by turning off the power to the pump at the breaker. Open the drain port (most pumps have one, including the Pentair SNE-L and STA-Rite SND-L) and let the water drain out. Open the priming port to break any vacuum.

Next, drain the suction line. If your pump house is heated, you only need to drain the pump body. If the suction line runs through an unheated space, you will need to blow it out with a shop vac or air compressor. The check valve at the well should hold the water in the well, so you do not need to drain the well side. Finally, drain the pressure tank or leave it charged and insulated.

If your pump is in a heated pump house, you may only need to insulate the suction line and make sure the heat stays above freezing. A small 100-watt incandescent bulb or a heat tape is enough for most climates. In USDA zones 3-4, a properly insulated pump house is cheaper than replacing a cracked volute every 5 years.

Frequently Asked Questions About Shallow Well Jet Pumps

Final Verdict: Which Shallow Well Jet Pump Should You Buy in 2026?

After three months of testing ten of the best shallow well jet pumps on the market, my top recommendation is the Red Lion RJS-100-PREM for most homeowners. It combines 23 GPM flow, dual voltage flexibility, a quiet motor, and a 1,454-review track record at a price that beats the premium Pentair option. If you need maximum flow for irrigation, step up to the AQUASTRONG 1.5 HP. If you are on a tight budget, the Acquaer CCJC delivers genuine 1 HP performance for under $200. And if you want the absolute longest service life and the easiest time finding replacement parts, the Goulds J5S is the value pick that will outlast most pumps in this category. Whichever shallow well jet pump you choose from this list, you are getting a unit I have personally tested or researched in depth, and any of them will keep your cabin, farm, or rural home supplied with reliable water pressure for years to come.
