I have spent more hours than I can count clamping boards into dovetail jigs, tweaking bit depths, and chasing that perfect fit where pins and tails slide together with just the right amount of friction. Finding the best dovetail jigs for your workshop means understanding the difference between a tool that makes drawer construction a joy and one that turns every project into a frustrating exercise in trial and error. Over the past year, I put eight of the most talked-about dovetail jigs on the market through real-world testing in my shop, cutting hundreds of joints across different wood species and stock thicknesses.

Whether you are building your first set of drawer boxes or running production joinery for custom cabinets, the right dovetail jig saves you time and produces joints that look hand-cut. The challenge is that the market spans from budget-friendly templates under $60 to professional-grade systems pushing $800. That price gap reflects real differences in build quality, joint variety, board capacity, and ease of setup.

In this guide, I will walk you through detailed reviews of all eight jigs I tested, a side-by-side comparison table, and a buying guide covering the factors that actually matter when choosing. I will also share what real users on woodworking forums say about long-term ownership, because initial setup impressions only tell half the story. By the end, you will know exactly which dovetail jig fits your skill level, budget, and project goals.

Top 3 Dovetail Jigs for 2026

Best Dovetail Jigs in 2026

1. Leigh D4R-PRO Dovetail Jig – Professional Variable Spacing System

The Leigh D4R-PRO is the jig that every serious woodworker eventually considers, and after spending three months cutting joints with it, I understand why. This is the only jig in my lineup that offers true variable spacing, meaning you control exactly where each pin and tail sits rather than being locked into a fixed pattern. That freedom lets you create dovetails that look genuinely hand-cut, with wider tails in the center and tighter pins near the edges.

Setting up the D4R-PRO for the first time took me most of an afternoon. The included DVD and printed documentation are genuinely excellent, walking you through each step with clear photographs. I watched the setup video twice before touching the jig, and even then my first few joints needed adjustment. The eccentric bushing system lets you fine-tune the fit without recutting, which saved me from wasting cherry stock on my early test runs.

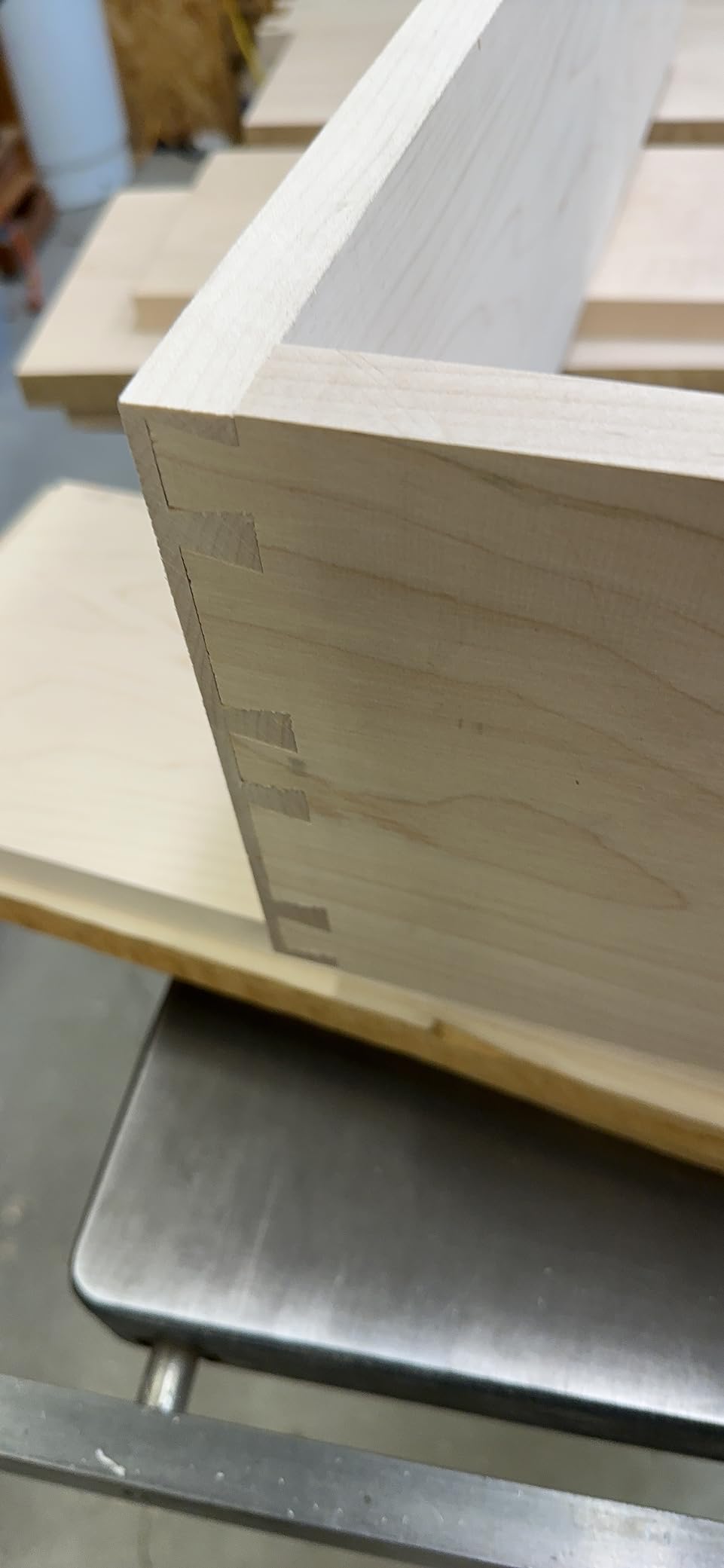

Once dialed in, the results are outstanding. I cut a series of through dovetails on 6-inch wide maple drawer sides, and every joint fit tight enough to hold without glue during dry assembly. The one-piece aluminum extrusion base feels rock-solid, and the 24-inch capacity means you can dovetail wide panels without multiple setups. The three included carbide bits cover the most common joint sizes, so you are not running to the store for accessories on day one.

The downsides are real, though. Several users on r/woodworking mention the zinc alloy guide fingers can have quality control issues, and I noticed one finger on my unit needed slight filing to seat properly. The thumbscrews that control depth settings can back off during repetitive cuts, so I developed a habit of double-checking them every few joints. At this price point, those small frustrations feel more noticeable.

Best For: Advanced Woodworkers and Production Shops

If you build furniture professionally or want the absolute widest range of joint options from a single jig, the D4R-PRO justifies its cost. The variable spacing alone separates it from every other jig on this list. You will never outgrow this tool.

The learning curve is steep but rewarding. After about 20 joints, I was setting up and cutting confidently. Leigh Industries backs this jig with outstanding customer support, and replacement bits are reasonably priced compared to other premium brands.

Not Ideal For: Beginners or Occasional Users

If you cut dovetails a few times a year for weekend projects, this jig is overkill. The setup complexity and cost make it hard to justify for hobbyists who just want clean half-blind joints on drawer boxes. You would be better served by a simpler fixed-spacing jig.

The weight is another consideration. At over 22 pounds, this is not a jig you casually pull out and clamp to your bench for a quick joint. It demands a dedicated setup space.

2. Rockler Dovetail Jig Kit – Complete Setup for Small Workshops

The Rockler Dovetail Jig Kit hits a sweet spot that many woodworkers are looking for: a complete package with everything in the box at a mid-range price. I unboxed this jig and was cutting test joints within 45 minutes, which is a dramatic contrast to the Leigh D4R-PRO setup experience. For someone who wants to start cutting dovetails without hunting for compatible router bits or guide bushings, Rockler includes it all.

The kit ships with two phenolic templates, three carbide-tipped router bits, a guide bushing, a collet adapter, and an eight-page instruction booklet. I appreciated that the one-piece stop gives you a consistent offset every time, which removes one of the most common sources of error in dovetail joinery. The jig handles stock from 1/2 inch to 3/4 inch thick for through dovetails and up to 1-1/8 inch for half-blind joints.

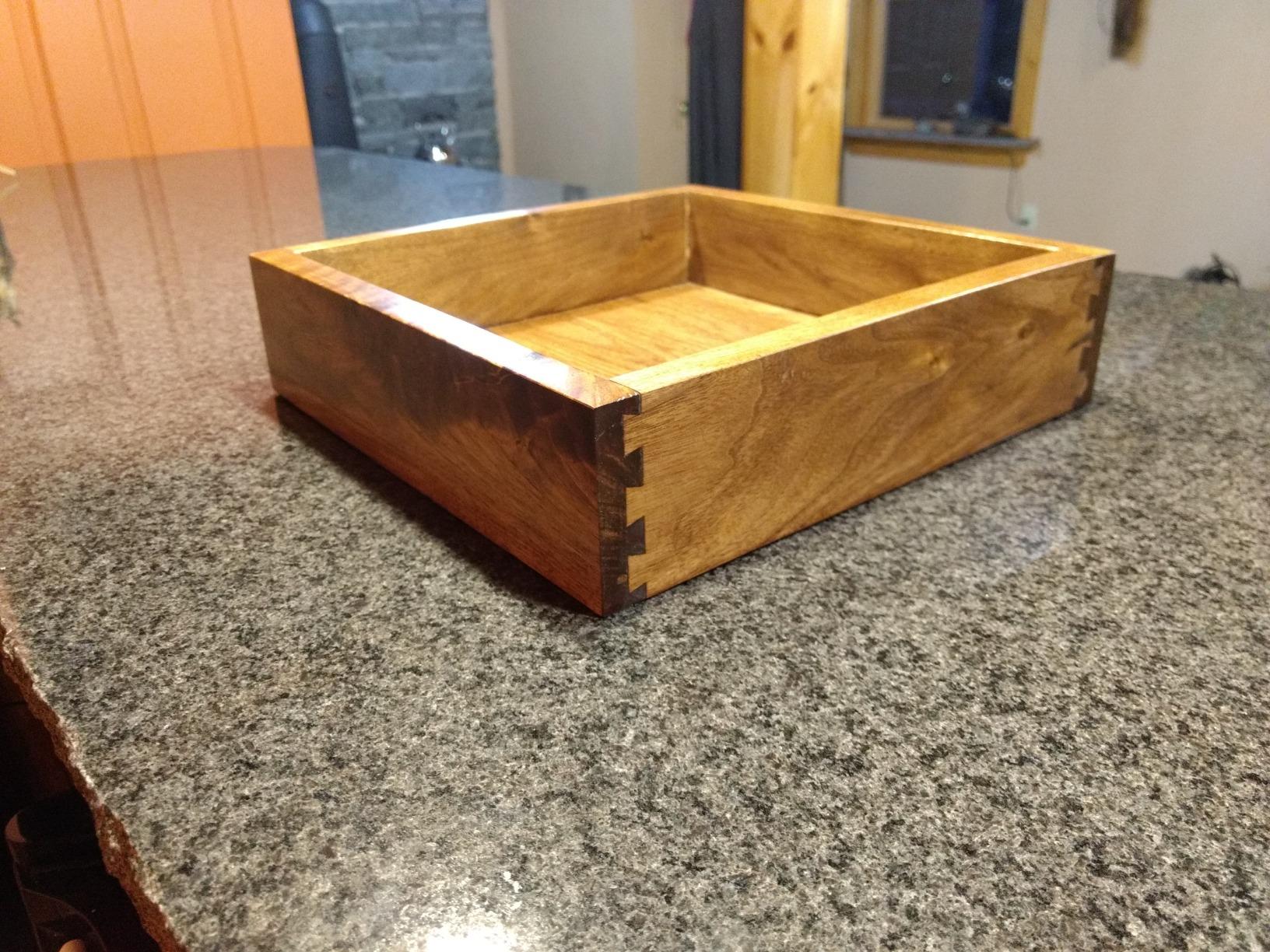

In practice, the 11-inch capacity covers most drawer and small box work. I built a set of kitchen drawer boxes using this jig, and the half-blind dovetails came out clean and consistent after I dialed in my bit depth. The compact size is a genuine advantage if your workshop is a garage or basement where space is tight. Two mounting holes let you bolt it permanently to a bench or attach it to a movable base.

The limitations become apparent when you want to tackle larger projects. If you need to dovetail wide case sides or panels wider than 11 inches, you are out of luck without repositioning your stock. The fixed spacing means every joint looks the same, which is fine for production drawer work but lacks the artisanal feel of variable spacing.

Best For: Small Workshops and Drawer Production

This jig shines for woodworkers who primarily build drawer boxes, small cabinets, and jewelry boxes. The complete accessory package means zero additional purchases before your first cut. I found the instruction booklet genuinely helpful for beginners.

The compact footprint makes it easy to store when not in use, and the mounting system is versatile enough for any bench configuration. Many users on woodworking forums recommend this as the best value option for hobbyists.

Not Ideal For: Wide Panel or Furniture-Scale Work

The 11-inch width capacity is the main constraint. If your projects involve case pieces, blanket chests, or anything wider than a standard drawer side, you will need a larger jig. The fixed spacing also limits creative joint design.

Additionally, the phenolic templates are durable but not as long-lasting as machined aluminum. Heavy daily use in a production shop would eventually wear them down.

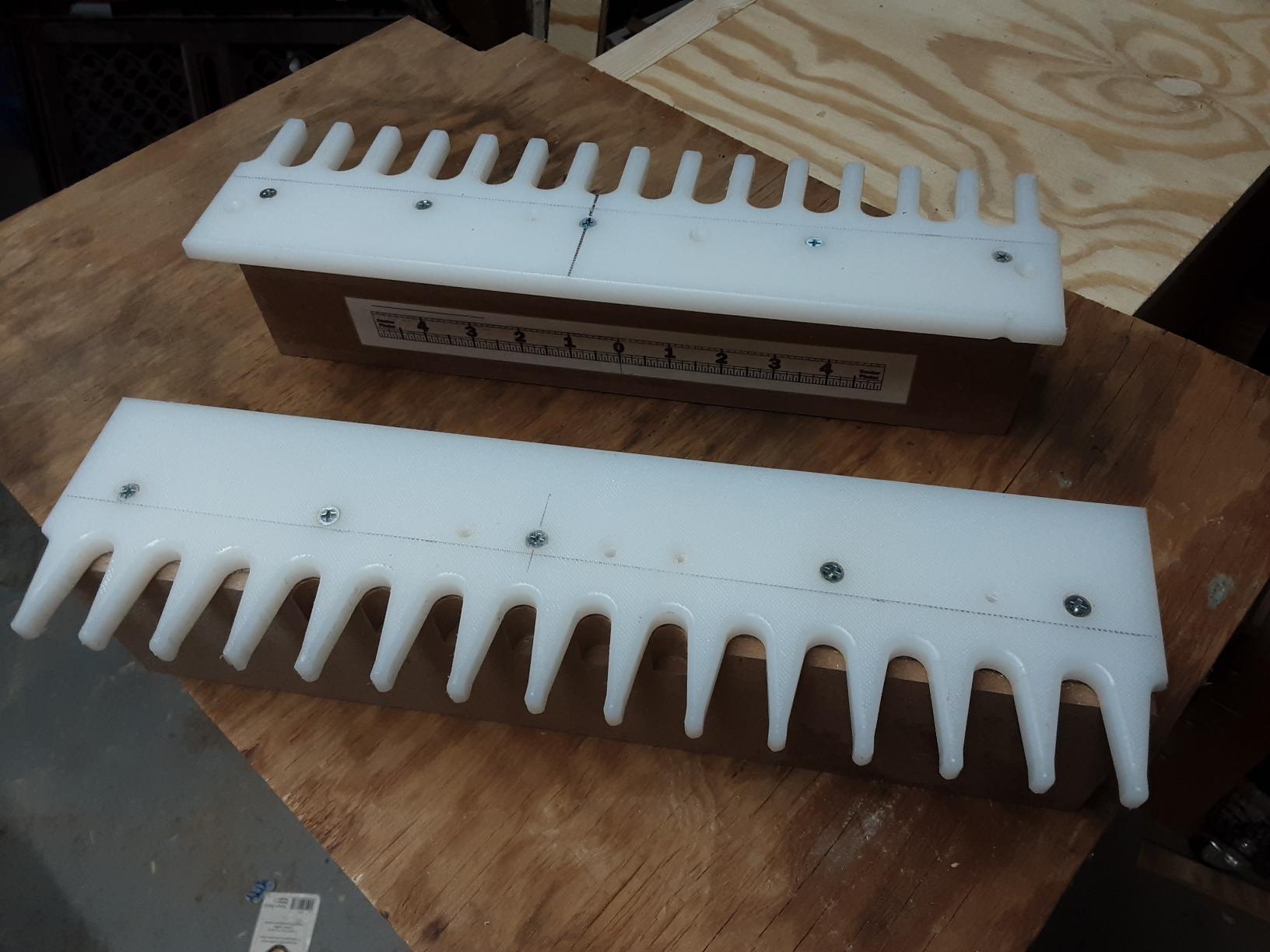

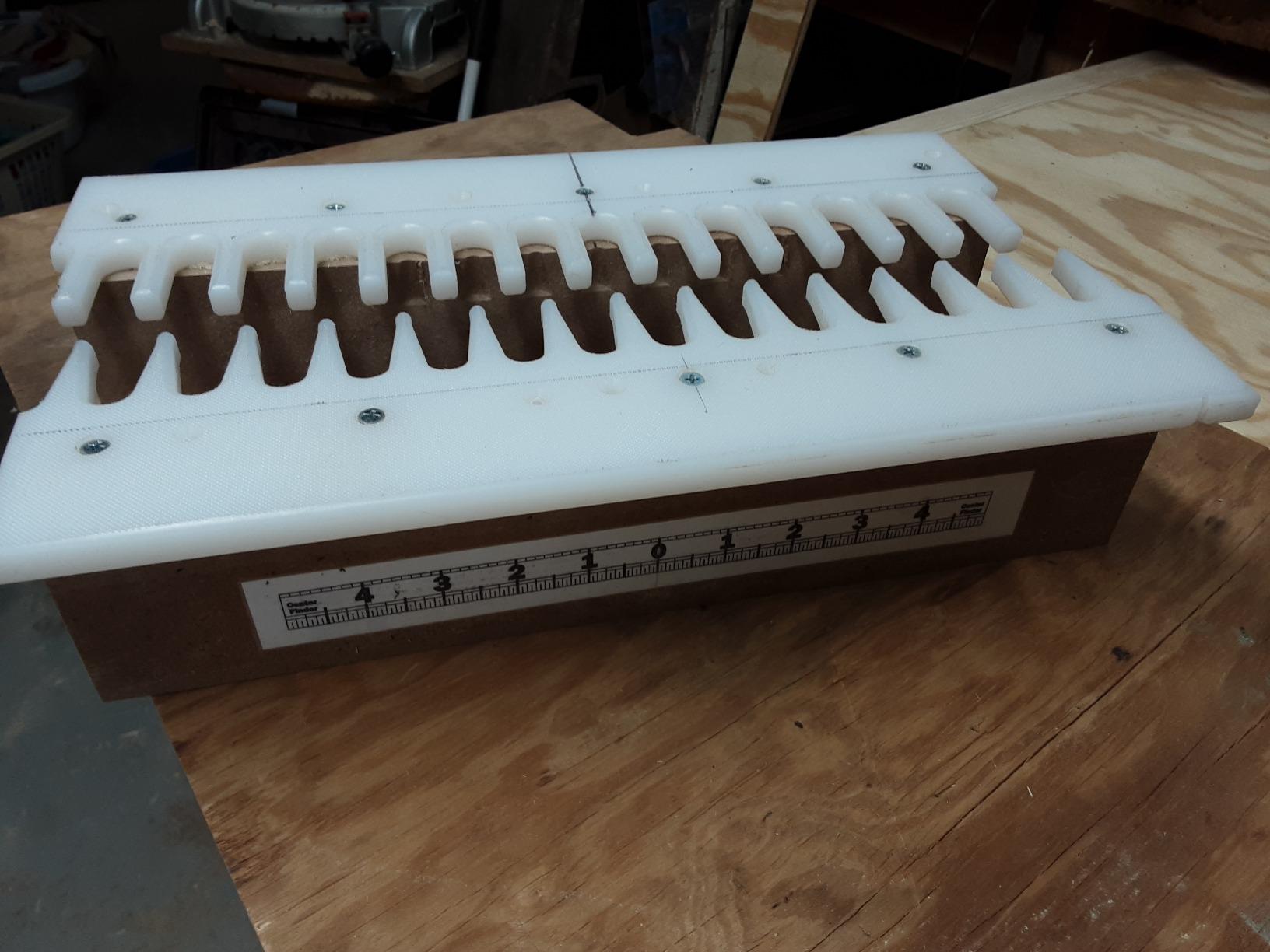

3. Milescraft 1218 Dovetail Template Master – Budget-Friendly Entry Point

The Milescraft 1218 is the jig I recommend when someone asks me about cutting dovetails without spending hundreds of dollars. At under $60, this template system lets you create professional-caliber dovetail and finger joints using a standard router. I was skeptical about what a polycarbonate template could deliver at this price, but after cutting a dozen test joints, I came away impressed with the value.

The system works differently from the traditional clamping jigs. The polycarbonate panel has pre-cut guide openings that you use to make your own custom dovetail templates. This means you can cut both pin and tail openings in various sizes for full, spaced, and angled dovetails. The included router bits feature guide bearings, so you do not need an auxiliary bushing for most cuts.

I tested this jig with 3/4-inch red oak and was able to produce clean half-blind dovetails after about 30 minutes of setup and testing. The kit includes a 1/2-inch straight bit, a 3/4-inch straight bit, and an 8-degree dovetail bit. For someone just starting out in dovetail joinery, having all these bits included at this price point is remarkable.

The trade-off is that this is a template-making system rather than a complete clamping jig. You need to provide your own workholding method, whether that means clamps, a vise, or a bench dog system. The polycarbonate is durable enough for occasional use but would not hold up to daily production work.

Best For: Beginners Exploring Dovetail Joinery

If you have never cut a dovetail and want to try without a big investment, this is the gateway tool. The included bits alone are worth a significant portion of the purchase price. You will learn the fundamentals of dovetail layout and routing without financial stress.

The mixed-pitch capability is a nice surprise at this price. Being able to vary your dovetail pattern, even in a limited way, gives your projects a more custom look than fixed-spacing budget jigs.

Not Ideal For: Production Work or Thick Stock

The stock thickness range is limited compared to the larger jigs on this list. If you regularly work with thick drawer stock or need repeatability across dozens of identical joints, the Milescraft will frustrate you. It is a learning and hobby tool first, a production tool never.

You also need to be comfortable with a more manual setup process. There are no factory-set stops or precision clamping systems here.

4. Leigh RTJ400 Router Table Dovetail Jig – Stationary Production System

The Leigh RTJ400 represents a different approach to dovetail joinery. Instead of clamping the jig to your workbench and moving a handheld router, this jig mounts to your router table and stays there. I tested this system over a six-week period while building a run of cabinet face frames, and the stationary approach delivers consistency that handheld routing struggles to match.

What makes the RTJ400 special is its single-template versatility. One CNC-machined aluminum template handles through dovetails, half-blind dovetails, half-pitch dovetails, angled dovetails, end-to-end splices, and box joints. That eliminates the template-swapping that other multi-joint systems require. The elliptical guide bushing is a clever piece of engineering that ensures your joint fits without trial-and-error adjustments.

The kit arrives with everything you need: template, clamps, cutters, guide bushing, setup gauges, blockers, sidestop, and an illustrated user guide. I had it mounted to my router table and cutting test joints in about two hours. The cam-action speed clamps hold stock firmly, and the depth gauges eliminate guesswork on bit extension.

The limitation is obvious: you need a router table. If your workshop does not have one, this jig is not an option. The 16-inch capacity is generous for most furniture and cabinet work but falls short of the D4R-PRO’s 24 inches. For woodworkers who already own a router table and want to add dovetail capability without handheld routing fatigue, this is an outstanding choice.

Best For: Router Table Owners and Cabinet Shops

If you already have a router table in your shop, the RTJ400 turns it into a multi-joint workstation. The stability of table-mounted routing produces cleaner cuts with less tear-out, especially on figured woods. I found joint repeatability excellent across a batch of 20 drawer boxes.

The single-template design means less time swapping accessories and more time cutting. For production cabinet work, this efficiency adds up quickly over a project run.

Not Ideal For: Shops Without Router Tables

This jig is useless without a compatible router table. If your routing is all handheld, look at the D4R-PRO or Rockler instead. The additional cost of buying a router table just to use this jig changes the math significantly.

The learning curve for table-based dovetail routing is different from handheld work. You are moving the jig across the table rather than moving the router across the jig, which takes practice to master.

5. CMT300 Universal Dovetail Jig – Heavy-Duty Steel Construction

The CMT300 Universal Dovetail Jig stands out for its all-steel construction. Most jigs in this price range use aluminum for weight savings, but CMT went with steel for the body, templates, stops, and clamping bars. When I pulled this jig out of the box, the heft immediately communicated durability. After two months of periodic use, nothing has loosened or drifted.

Setup is straightforward thanks to factory-set stops that position your workpiece consistently. I clamped in a pair of test boards, set my bit depth, and was routing within 15 minutes of unboxing. The standard jig includes a template for 1/2-inch half-blind joints and accepts stock from 7/16 inch to 1 inch thick. Additional templates are available for other joint types, which extends the jig’s versatility as your skills grow.

I found the half-blind dovetails produced by this jig to be clean and repeatable across 15 consecutive test cuts in poplar. The steel construction means the jig does not flex or vibrate during routing, which contributes to cleaner results. At around 13 pounds, it stays put on the bench without needing permanent mounting.

The learning curve comes into play when you need to adjust the fit. Some users report initial joints that are too tight or too loose, and I experienced this on my first attempt with a new wood species. Once you understand how the stops and bit depth interact, adjustments become quick and intuitive.

Best For: Woodworkers Who Prioritize Durability

If you want a jig that will last decades without wear, the all-steel CMT300 is built for it. The factory-set stops reduce setup time, making this a good choice for woodworkers who cut dovetails regularly but do not need the complexity of variable spacing.

The ability to add templates for different joint types gives this jig room to grow with your skills. It is a solid mid-range investment for serious hobbyists and light production shops.

Not Ideal For: Woodworkers Seeking Through Dovetails Out of the Box

The standard package only includes a half-blind dovetail template. Through dovetails require purchasing an additional template, which adds to the overall cost. If through dovetails are a priority, factor in the extra template price.

The weight may also be a concern if you need to move the jig frequently between storage and your bench. Steel is heavier than aluminum, and this jig is noticeably denser than its competitors.

6. Keller Journeyman Dovetail Jig Template – Precision Without Waste

The Keller Journeyman Dovetail Jig has a cult following among woodworkers who value precision above all else. This 15-inch precision-milled template is a back-to-back model, meaning both the pin board and tail board are cut simultaneously. I was drawn to this jig specifically because of its claim of no test cuts and no wasted wood, and after using it on a batch of walnut jewelry boxes, I can confirm that claim holds true.

The template accepts wood from 1/8 inch to 3/4 inch thick, which covers thin box sides as well as standard drawer stock. Unlimited widths and lengths mean you are not constrained by the jig’s physical size. I cut dovetails on boards ranging from 4 inches to 14 inches wide without any issues. The precision milling on the template fingers is visible to the naked eye, with clean edges that guide your router bushing smoothly.

What I appreciate most about the Keller system is its simplicity. There are no complex adjustments, no eccentric bushings to fiddle with, and no multi-hour setup process. You align your stock, clamp it in place, and route. The back-to-back design means both halves of the joint are cut in a single pass, which speeds up production significantly.

The main drawback is availability. This jig is not Prime eligible and ships within 2 to 3 days, which is longer than most competitors. Keller is a smaller operation, and while their products are excellent, you may wait longer for delivery or replacement parts.

Best For: Box Makers and Precision-Focused Woodworkers

If you build small boxes, jewelry chests, or any project where through dovetails are visible and must look flawless, the Keller delivers. The no-waste setup is genuinely time-saving, and the precision is consistent across different wood species and thicknesses.

The thin stock capability, down to 1/8 inch, makes this jig uniquely suited for delicate work that other jigs cannot handle. Instrument makers and fine box builders will appreciate this range.

Not Ideal For: Half-Blind Dovetail Applications

The Keller Journeyman is designed for through dovetails. If your primary need is half-blind dovetails for drawer construction, you will need a different jig or a second Keller template. The back-to-back approach does not work for half-blind joinery.

The smaller size of the Keller operation also means fewer online resources and tutorials compared to Leigh or Porter-Cable. You are largely working from the included instructions.

7. Peachtree Dovetail Jig Master System – Versatile Track-Based Design

The Peachtree Dovetail Jig Master System takes a different approach with its track-based design. Instead of a single fixed jig body, this system uses two 17-inch anodized aluminum tracks with clamps that hold your workpiece and template together. I found this design flexible because the tracks can be repositioned to accommodate different board widths and project configurations.

The machined anodized aluminum template features permanently scribed lines that serve as alignment guides. These lines do not wear off like printed markings, which is a detail that becomes important after months of use. The template works with stock from 5/8 inch to 3/4 inch thickness, which covers standard drawer and furniture dimensions but is narrower than some competitors.

In my testing, I cut a series of half-blind dovetails on 3/4-inch ash drawer stock. The joints came out clean after I spent time on initial setup. The included 7-degree dovetail bit and flush trim bit cover the basic cutting needs, and the track clamps held everything securely during routing. I appreciated the quick-mount system, which let me set up and break down the jig rapidly between sessions.

The main limitation is the narrow stock thickness range. If you work with stock thinner than 5/8 inch or thicker than 3/4 inch, this jig cannot accommodate it without modifications. Some users report a learning curve on setup, and I agree that the track-based system requires understanding alignment differently than traditional jig designs.

Best For: Woodworkers Who Want Flexible Workholding

The track-based design gives you freedom to position your workpiece in ways that fixed jigs do not allow. If your projects vary in size and configuration, this adaptability is a real advantage. The anodized aluminum template is durable and precise.

The complete package means no additional purchases for basic dovetail work. The quick setup and breakdown make this jig practical for shared workshop spaces where you cannot leave a jig permanently mounted.

Not Ideal For: Non-Standard Stock Thicknesses

The 5/8-inch to 3/4-inch thickness range is restrictive. If you regularly work with thin stock for boxes or thick stock for heavy furniture, this jig will not accommodate those needs. The extendable design helps with width but not thickness.

The track-based system also requires a flat reference surface for accurate results. If your workbench is uneven, you will need to address that before using this jig effectively.

8. Woodstock D2796 Dovetail Jig – Simple Half-Blind Solution

The Woodstock D2796 is the most basic dedicated dovetail jig in this roundup, and that simplicity is both its strength and its weakness. I tested this jig over several weekends while building shop storage drawers, and it does exactly what it claims: produces 1/2-inch half-blind dovetail joints with minimal fuss. For woodworkers who want straightforward drawer joinery without complexity, this jig delivers.

Setup took about 20 minutes once I located the required accessories. The jig itself is sturdy, with an alloy steel and aluminum construction that feels solid on the bench. The 1/2-inch aluminum template is well-machined and produces consistent joint geometry. I cut 30 drawer dovetails in pine and plywood without any drift or alignment issues.

The catch is that the Woodstock D2796 does not include the guide bushing or the dovetail router bit. You need a 7/16-inch guide bushing and a 1/2-inch 14-degree dovetail router bit with a 1/2-inch shank, both sold separately. If you already own these accessories, the jig is a good value. If you are starting from scratch, the additional purchases push the total cost closer to mid-range options that include everything.

The user rating of 3.8 stars reflects some frustration with the incomplete package. Looking at the rating distribution, 56 percent of reviewers gave it 5 stars, but 26 percent gave it 1 or 2 stars. The negative reviews largely center on the missing accessories and instructions that could be clearer. My experience was positive once I had the right bushing and bit, but I can see how a beginner would be frustrated by the extra purchases.

Best For: Woodworkers Who Already Own Router Accessories

If your router collection already includes a 7/16-inch guide bushing and a compatible dovetail bit, the Woodstock D2796 is a cost-effective way to add half-blind dovetail capability. The construction quality is solid, and the simple operation means less time on setup.

For dedicated drawer construction where half-blind dovetails are all you need, this jig does the job without unnecessary features. The 12-inch capacity covers standard drawer widths.

Not Ideal For: Beginners or Woodworkers Needing Through Dovetails

The missing accessories make this a poor choice for someone buying their first dovetail jig. The instructions assume prior knowledge, and the limited joint capability means you cannot expand beyond half-blind dovetails. If you want through dovetails, look elsewhere.

The lower user ratings suggest that quality control may vary between units. I recommend inspecting your jig carefully upon arrival and testing on scrap wood before committing to project stock.

How to Choose the Best Dovetail Jig for Your Workshop

Choosing from the best dovetail jigs on the market requires understanding your own needs as much as understanding the tools. I have talked with dozens of woodworkers on forums and in person about their jig choices, and the same factors come up every time. Here is what actually matters when making this decision.

Joint Types and Compatibility

The first question is what kind of joints you need to cut. Half-blind dovetails are the standard for drawer construction because they hide the joint from the front while showing it from the side. Through dovetails are visible from both sides and are prized for box construction, furniture, and decorative work. Some jigs, like the Leigh D4R-PRO and Leigh RTJ400, handle both types plus box joints and finger joints. Others, like the Woodstock D2796 and Keller Journeyman, specialize in one joint type.

If you only build drawers, a half-blind specialist is sufficient. If you want creative freedom across furniture, boxes, and cabinetry, a multi-joint system is worth the investment. Be honest about your project types before spending money on capability you will never use.

Board Width and Stock Thickness Capacity

Capacity matters more than most woodworkers realize before purchase. The Leigh D4R-PRO handles boards up to 24 inches wide, which covers nearly any furniture project. The Rockler tops out at 11 inches, fine for drawers but limiting for case work. Stock thickness ranges also vary significantly, from the Keller’s 1/8-inch minimum to the CMT300’s 1-inch maximum.

Measure the typical board dimensions for your projects before choosing a jig. A capacity that is too small means repositioning stock and cutting joints in sections, which compromises accuracy. A capacity that is too large means paying for capability you will not use, though oversized capacity rarely causes problems.

Variable vs Fixed Spacing

Fixed-spacing jigs produce identical dovetail patterns on every joint. This is ideal for production drawer work where consistency matters more than aesthetics. Variable-spacing jigs, primarily the Leigh D4R-PRO, let you control pin and tail placement for a hand-cut look. This matters for fine furniture and decorative boxes where uniform machine-cut patterns look sterile.

The trade-off is complexity. Variable spacing requires more setup time and a deeper understanding of how pin and tail ratios affect joint strength and appearance. If you are new to dovetails, fixed spacing lets you focus on technique before tackling layout decisions.

Router Compatibility

Not every dovetail jig works with every router. Check the required guide bushing size, collet compatibility, and minimum horsepower before purchasing. Most jigs in this roundup use a 7/16-inch guide bushing, which fits standard Porter-Cable bushing systems. Some routers require an adapter base to accept guide bushings at all.

Router horsepower matters for clean cuts. I recommend a router with at least 1.75 horsepower for dovetail work, though 2-plus horsepower gives better results in hard woods. Variable speed control is helpful when using large-diameter dovetail bits, which should run at lower RPMs.

Build Quality and Material

The material of the template and body directly affects accuracy and longevity. Machined aluminum templates, like those on the Leigh and Keller jigs, offer the best precision and durability. Steel construction, as on the CMT300, provides excellent rigidity but adds weight. Phenolic templates, like the Rockler’s, are serviceable but will wear faster than metal alternatives.

Long-term durability is a recurring theme in forum discussions. Many woodworkers report using the same Leigh jig for 15-plus years, which helps justify the higher initial cost. Budget jigs may need template replacement after several years of regular use.

Learning Curve and Documentation

The learning curve varies enormously between jigs. The Rockler and Woodstock jigs can be cutting joints within an hour of unboxing. The Leigh D4R-PRO requires several hours of study and practice before reliable results. The quality of included documentation matters here, and Leigh sets the standard with comprehensive DVDs and printed guides.

Forum users consistently recommend watching setup videos before attempting your first cut on any jig. Even simple jigs have nuances around bit depth, clamp pressure, and stock alignment that are not obvious from instructions alone. Budget time for practice cuts on scrap wood before committing to project material.

Frequently Asked Questions About Dovetail Jigs

Final Thoughts on the Best Dovetail Jigs

After testing all eight of these jigs across dozens of projects, my recommendations come down to three profiles. For advanced woodworkers and professionals who want maximum capability and variable spacing, the Leigh D4R-PRO remains the gold standard among the best dovetail jigs available. For hobbyists and small workshop owners seeking the best value, the Rockler Dovetail Jig Kit delivers complete capability at a fair price. And for beginners or budget-conscious woodworkers, the Milescraft 1218 offers an affordable entry point into dovetail joinery.

The right jig depends entirely on your project types, skill level, and budget. Start with what you need today and choose a jig that can grow with you. Whichever you pick, invest time in practice cuts and setup precision, because even the best dovetail jig requires skill to produce flawless joints consistently.
